ME-00/P/485
Industrial scales (series Weight meters)
750.00 zł
Tax excluded
Readability [d]: 1, 2, 5, 10, ... (g, dkg, kg)
- 32-bit processor
- plastic enclosure
- RS232 interface
- assembly on rail
Security policy
Shipping rules
(contact dealer in your area)

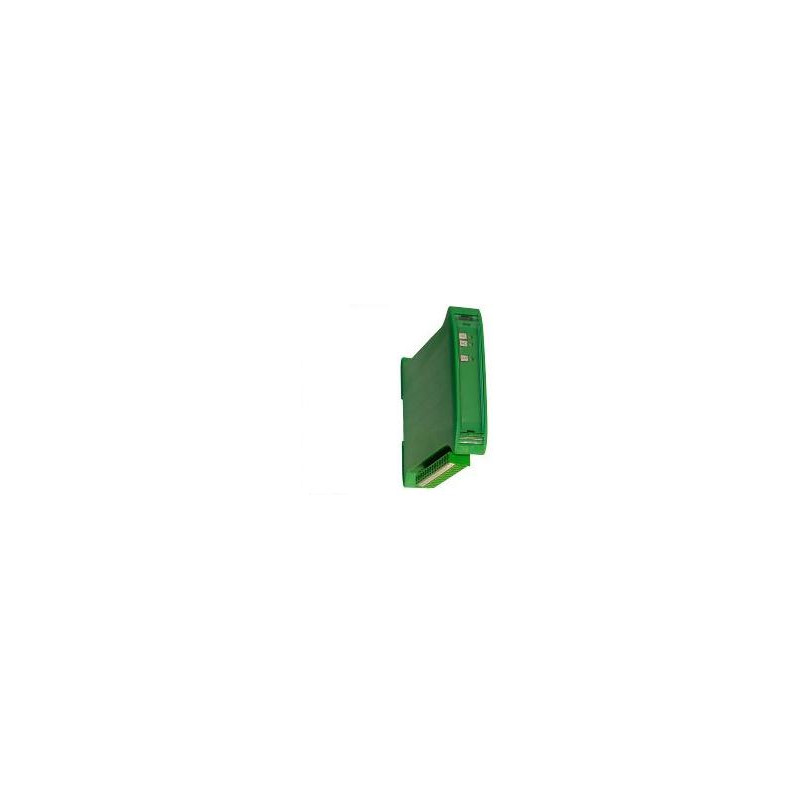

A converter module is assigned to convert measurement signals from extensometer sensors to digital information in RS485C standard (measurement network). Module housing enables assembling it into the control desk on the DIN rail.
- Reading unit (d)
- 1, 2, 5, 10, ... (g, dkg, kg)
- Working temperature
- 0 ÷ +40°C
- Dimensions
- 25x102x120
- Power supply
- 10 - 30 VDC 3VA
- Balance weight
- 130g
- Protection
- IP30
- Housing
- Plastic for DIN rail (TS-35)
- Type
- ME-00/P/485
- Maximal range (readout)
- max 1 000 000
- Sample maximal speed
- max 500Hz
- Transmission speed
- 4800 - 115 200 baud
- Tensometric sensors connection
- 4 or 6 wires + shield
- Interface
- RS485
- 32-bit processor
- plastic enclosure
- RS232 interface
- assembly on rail
