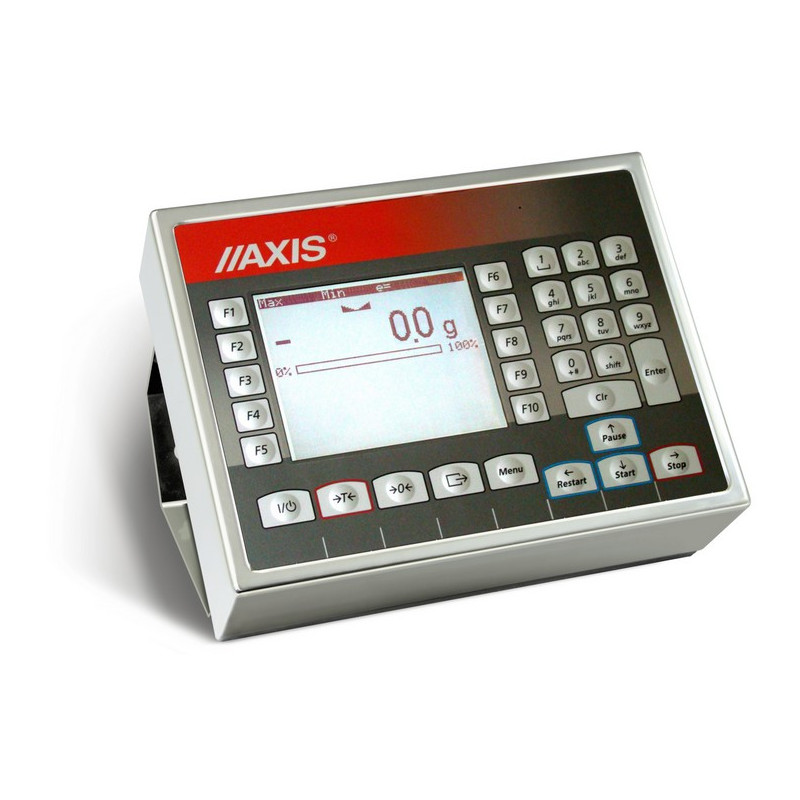

ME-03/N/G
Industrial scales (series Weight meters)
1,680.00 zł
Tax excluded
Readability [d]: 1, 2, 5, 10, ... (g, dkg, kg)
- external label printer control
- EPL/ZPL languages
- function and alphanumerical keys
- Graphical display
Security policy
Shipping rules
(contact dealer in your area)
ME-03 meters are designed for the control of label printers (EPL/ZPL language). The digital keyboard allows for entering: expiration date, product bar code, price, product name, etc. The data is stored for 1000 products.
Moreover, it is possible to print: the producer’s logo, tare, current date and time, charge, number of packages, number of pieces in the package, the sum of net and gross weights, and cumulative labels. Label print may be performed automatically after weighing. Function keys and the possibility to copy product settings to other products speed up the operation of the meter.
- Reading unit (d)
- 1, 2, 5, 10, ... (g, dkg, kg)
- Verification unit (e)
- any
- Tare range
- -Max
- Working temperature
- -10÷40°C
- Dimensions
- 238x180x86mm
- Power supply
- ~230V 50Hz 6VA
- Display
- graficzny
- Balance weight
- 3kg
- Range (verification units quantity)
- max 6000e (3000e per subrange)
- Protection
- IP65
- Applied error fraction
- 0,5
- Lowest possible input signal
- 0,3µV/e
- Sensor impedance
- 40÷4000 Ohm
- Sensor supply
- 5V AC 25Hz
- Sensor connecting system
- 1 sensor: 4-wire system, 1-8 sensors: 6-wire system
- Housing
- stainless steel
- Zakres napięcia pomiarowego
- -10mV ÷ 10mV lub 0mV ÷ 10mV
- Ilość podłączonych czujników
- max 8
- external label printer control
- EPL/ZPL languages
- function and alphanumerical keys
- Graphical display
