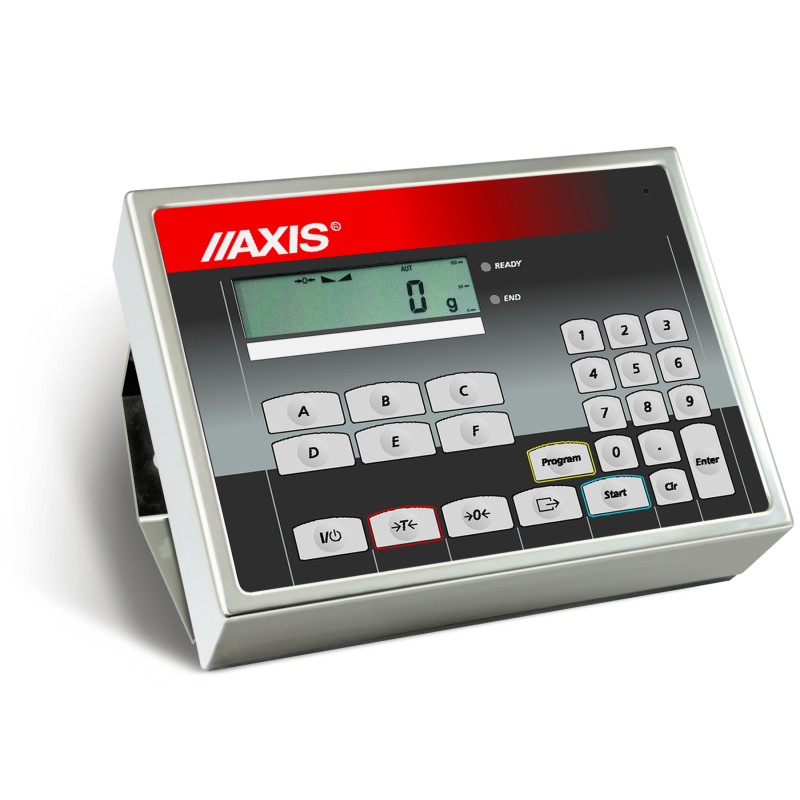

ME-02/N/LCD
Industrial scales (series Weight meters)
1,600.00 zł
Tax excluded
Readability [d]: 1, 2, 5, 10, ... (g, dkg, kg)
- single or multi-component dosing
- dosing up or down (tank)
- dosing with or without stabilization
- many other dosing options
- memory for 100 dosing recipes
- function and digital keys
- LCD with backlight
Security policy
Shipping rules
(contact dealer in your area)
Meters ME-02 in connection with extensometer sensors are used for standard weighing. Converters may be connected directly or by adding a (passive) module, allowing for sensor sensitivity correction.
Meters have to filtrate and correct systems, which gives a high class of measurement precision. Module operation control program allows for the free setting of the measurement range (max), reading unit (d), and verification unit (e).
Depending on the user's needs, the meter can have full or simplified firmware (corresponding to the discontinued SE-02). Please refer to the manuals for both versions for the differences. When ordering, please specify the selected version of the program (simple or full). We deliver the full version if we do not receive this information in the order.
The meter can work with a barcode scanner, printer, labeler, and computer.
- Reading unit (d)
- 1, 2, 5, 10, ... (g, dkg, kg)
- Verification unit (e)
- for scales of class II and III
- Tare range
- -Max
- Interfaces
- RS232C (protokół AXIS lub Modbus RTU)
- Working temperature
- -10÷40°C
- Dimensions
- 238x180x77mm
- Power supply
- ~230V 50Hz or 12V (option); batteries (option)
- Display
- LED 14mm
- Balance weight
- 2,3kg
- Range (verification units quantity)
- max 6000
- Protection
- IP65
- Applied error fraction
- 0,5
- Lowest possible input signal
- 0,3 μV
- Sensor impedance
- 40÷4000 Ohm
- Sensor supply
- 5V AC 25Hz
- Sensor connecting system
- 4 or 6 wire system
- Housing
- stainless steel
- Keyboard
- digital keyboard
