ME-01/A/LCD
Industrial scales (series Weight meters)
920.00 zł
Tax excluded
Readability [d]: 1, 2, 5, 10, ... (g, dkg, kg)
- 32-bit microprocessor
- LED 18mm display
- communication with the computer (option)
- accumulator powered option
- database, extended special function set
Security policy
Shipping rules
(contact dealer in your area)

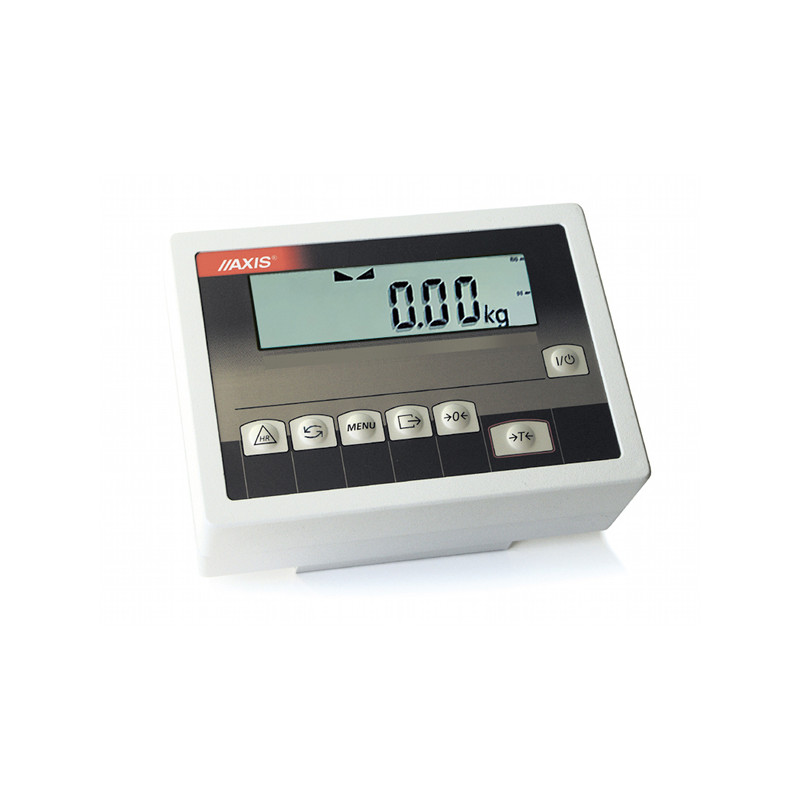

ME-01 meter is a component assigned to build 1- or 2-range scales using extensometer force sensors. Meter can be powered from accumulators located inside meter housing.
- Reading unit (d)
- 1, 2, 5, 10, ... (g, dkg, kg)
- Verification unit (e)
- for scales of class II and III
- Tare range
- -Max
- Interfaces
- RS232C, options: USB, RS485, LAN or Wi-Fi (one selectable)
- Working temperature
- -10÷40°C
- Dimensions
- 190x140x70mm
- Power supply
- ~230V 50Hz or 12V (option); batteries (option)
- Display
- LED 18mm
- Balance weight
- 1,8kg
- Range (verification units quantity)
- max 6000
- Protection
- IP40
- Applied error fraction
- 0,5
- Lowest possible input signal
- 0,3 μV
- Sensor impedance
- 40÷4000 Ohm
- Sensor supply
- 5V AC 25Hz
- Sensor connecting system
- 4 or 6 wire system
- Housing
- varnished aluminum
- Keyboard
- standard 7-key keyboard
