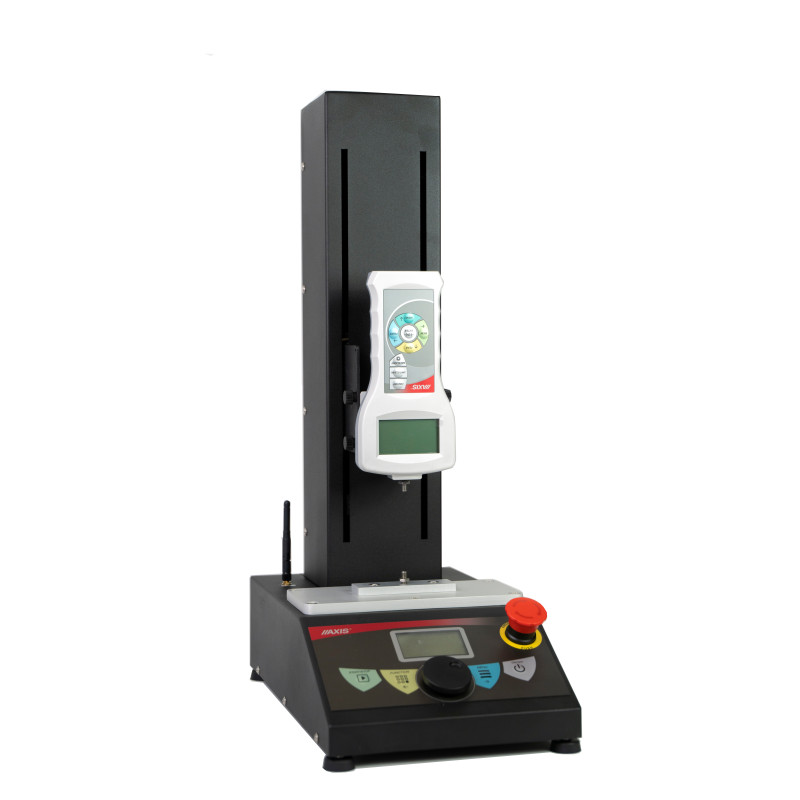

STAV500/500 motorized vertical test stand

Automatic (series STAV)

8,300.00 zł
Tax excluded

Capacity [max]: 500N

STAV500 vertical test stand with electric drive is designed for FB50, FB200, FB500, FC50, FC200 and FC500 force gauges.



Security policy

  Shipping rules

(contact dealer in your area)

STAV500 vertical test stand with electric drive is designed for FB50, FB200, FB500, FC50, FC200 and FC500 force gauges.

Force up to 500N and travel 500mm.

Thanks to precise programming motion mechanism STAV500 enables to perform precise measurements during e.g. material resistance testing.

STAV500 optionally can be equipped with wireless module for  communication with force gauge.

Presentation:

Capacity (Max)
500N
Interfaces
Wireless Module, RS232C, USB
Working temperature
-10 ÷ +40°C
Dimensions
238x407x880mm
Power supply
~230V 50Hz 100VA / 24V 4A
Display
LCD graphical
Balance weight
26 kg
Stroke
Maximal speed
300mm/min
Shift resolution
0,01mm
Shift accuracy
+/- 1,2mm
Minimal speed
10mm/min
Maximum deflection of the column under load
1,3mm
Motion programmes memory
10
Maximum number of motion cycles
10 000
Maximal steps quantity in one cycle
8
