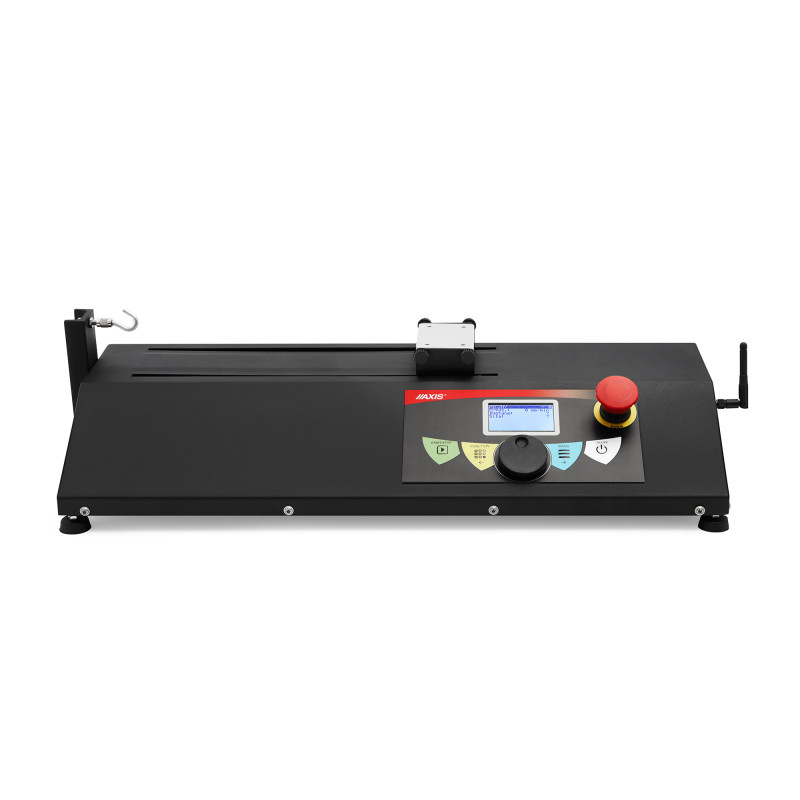

STAH500/300 Motorized horizontal test stand
Automatic (series STAH)
7,750.00 zł
Tax excluded
Capacity [max]: 500N
The STAH horizontal tripod with electric drive is designed for FB50, FB200, FB500, FC50, FC200, and FC500 force gauges.
Security policy
Shipping rules
(contact dealer in your area)
Thanks to the precise programmable shifting mechanism, it enables precise measurements of force, e.g. when testing the strength of materials.
- Capacity (Max)
- 500N
- Interfaces
- Wireless Module, RS232C, USB
- Working temperature
- -10 ÷ +40°C
- Dimensions
- 718x250x180mm (With dynamometer)
- Power supply
- ~230V 50Hz 100VA / 24V 4A
- Display
- LCD graphical
- Balance weight
- 22,5 kg
- Stroke
- 300mm
- Maximal speed
- 300mm/min
- Shift resolution
- 0,01mm
- Shift accuracy
- +/- 1,2mm
- Minimal speed
- 10mm/min
- Maximum deflection of the column under load
- 1,3mm
- Motion programmes memory
- 10
- Maximum number of motion cycles
- 10 000
- Maximal steps quantity in one cycle
- 8
The STAH horizontal tripod with electric drive is designed for FB50, FB200, FB500, FC50, FC200, and FC500 force gauges.
