2 yearswarranty
FSA2
Torque measurement (series FSA)
4,600.00 zł
Tax excluded
Readability [d]: 0,001Nm
Capacity [max]: 2Nm
- cap torque measurement in both directions
- high speed of measurement - up to 1000 samples per second
- peak mode
- storing measurement results into memory
- USB and RS232C serial interface
- statistics, graphs, comparing to thresholds function
Security policy
Shipping rules
(contact dealer in your area)

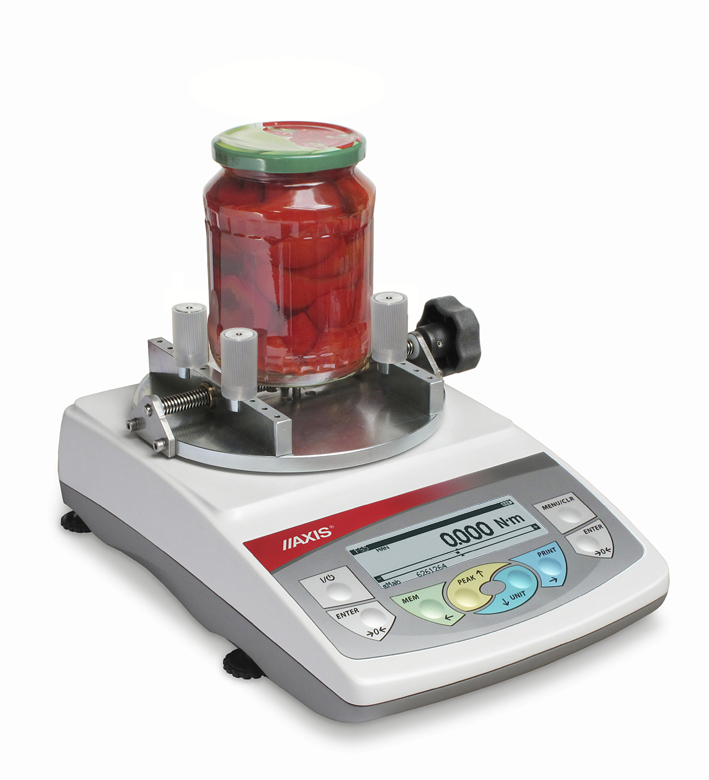

Cap torque testers FSA series are designed for measuring torque during opening jar, bottles etc..

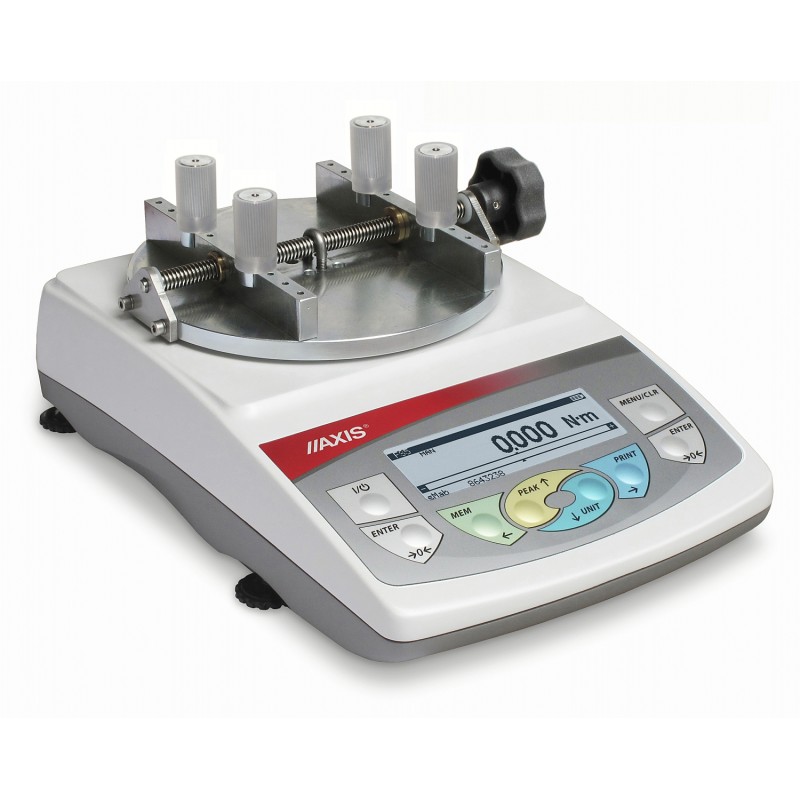

Tester is equipped with a wide range clamp to measure variety of objects. Measurement processor enables to register maximal force torque needed for example to open a jar.

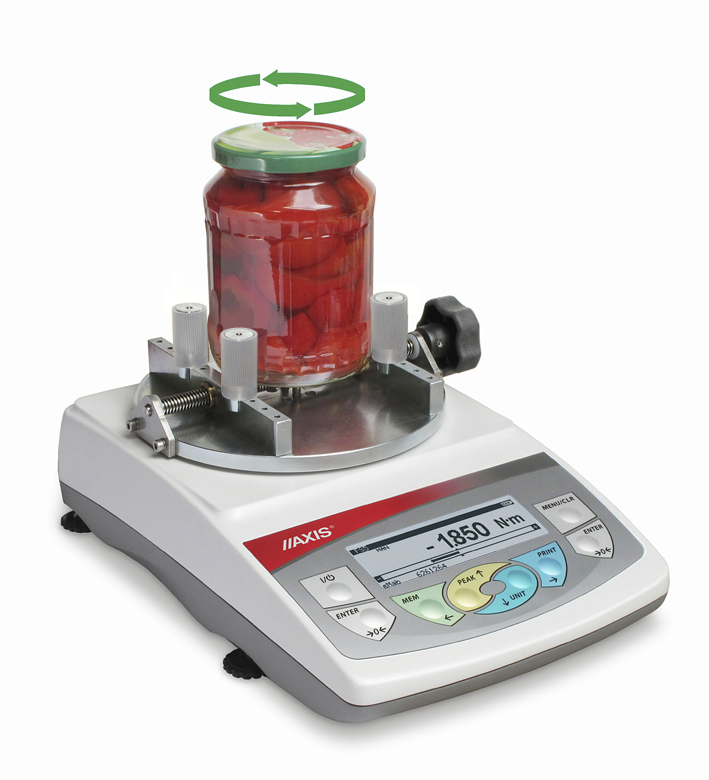

Torque measurement can be realized in both directions, measurement time course registration and graph is possible. Clamp has a solid, universal construction that enables adaptation and expansion. Thus FSA can be used in complex measurement systems.
|
|
|
Special functions:
- peak value measurement
- threshold comparision
- statistics
- measurement unit selection
- Capacity (Max)
- 2Nm
- Reading unit (d)
- 0,001Nm
- Interfaces
- RS232C, USB, microSD slot options: transoptor out (thr function)
- Working temperature
- 0 ÷ +40°C
- Dimensions
- 345x236x160mm
- Power supply
- supply ~230V 50Hz / 12V; 1,2A ; accumulator supply 4xAA
- Accuracy
- ±0,5% F.S.
- Maximal overload
- 50% measurement range
- Balance weight
- 5,1kg
- Sample diameter range
- Ø20 ÷ 180mm
- Maximal weight of sample
- 15kg
- cap torque measurement in both directions
- high speed of measurement - up to 1000 samples per second
- peak mode
- storing measurement results into memory
- USB and RS232C serial interface
- statistics, graphs, comparing to thresholds function
