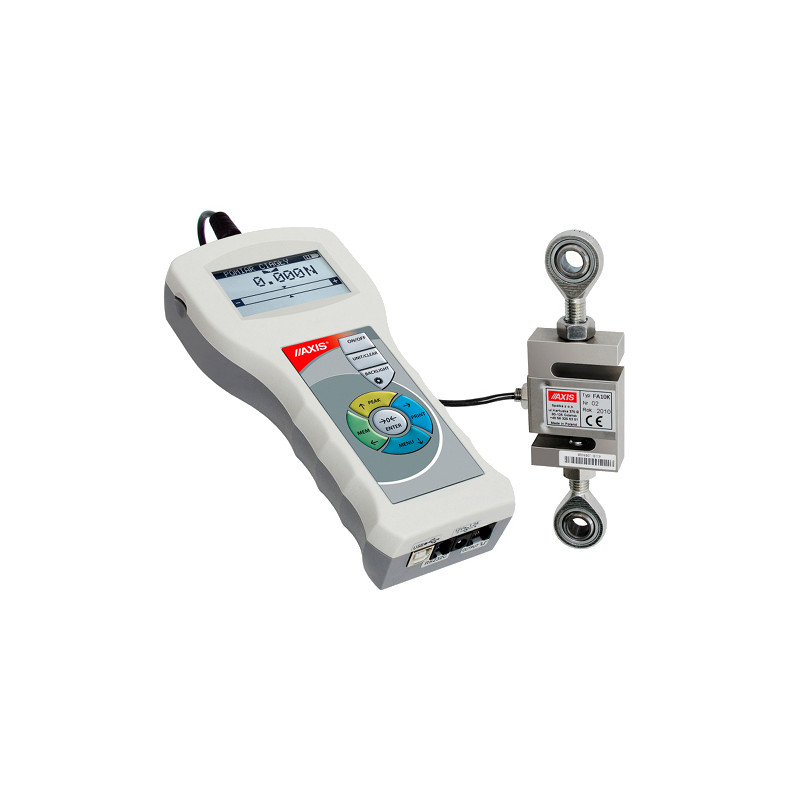

FC2k

forces over 500N (series FCk)

2,530.00 zł

Extra options

Outputs

Threshold output (thr function) (

70.00 zł

)

Cables

USB type A / type B cable (PC connection) (

30.00 zł

)

Functions

Bluetooth (wireless communication with computer) (

260.00 zł

)

Accessory

Compatible microSD card (8GB) (

50.00 zł

)

Additional configuration

Internal extension data memory (72,000 measurements or 26,000 with date and time) (

100.00 zł

)

Metrological verification protocol (

70.00 zł

)

Calibration in one direction (tension or compression) (

600.00 zł

)

Calibration in both directions (

1,200.00 zł

)

Total option price

Tax excluded

Readability [d]: 0,5N

Capacity [max]: 2kN (~200kg)

indications in g, lb, oz, N, kg, kgf, lbf, ozf
graphical display
USB and RS232C interface in standard
storing measurements results on microSD cards
calibration with external weight
accumulator

Capacity (Max)

Security policy

Shipping rules

(contact dealer in your area)

FB and FC series force meters are dedicated for measuring force during pressing and pulling activities, as well as for mass measuring. FC series have increased sampling time (1000 measurements per second!) that enables better measurement of dynamical forces. Force meters are used in specialised laboratories, manufacturing and quality control.
Their characteristic features are ergonomic shape and easy operating.
The sensor is supplied with bearings that eliminate measurment errors. The measurement error is a result from irregular loading of force sensor.
FB(C)100k and FB(C)150k force gauges are supplied without bearings.

Force meter and bearings dimensions:

- FB1k-FB5k and FC1k-FC5k
- FB10k and FC10k
- FB20k and FC20k
- FB50k and FC50k
- FB100k-FB150k and FC100k-FC150k

Graphical display of the meter allows easy reading of indications or presenting measurement results on histogram or on chart.

Special computer program for acquisition and data presentation delivers new possibilities in area of observing and measuring variable forces.

Wide range of printout configuration affirms compliance with requirements of GLP procedures, when a printer is connected to force meter.

Special functions:
- measuring maximum value
- comparing with thresholds
- statistics
- charts

Capacity (Max): 2kN (~200kg)
Reading unit (d): 0,5N
Interfaces: RS232C, USB, option: WE (trigger and gate output), WY (threshold output)
Working temperature: -10÷+40
Dimensions: 215x98x41mm
Power supply: NiMH accumulators - 4pcs.+ supply ~230V/12V
Sampling time: 0,001÷100s
Accuracy: ±0,1% F.S.
Maximal overload: 20%
Measure units: N, g, lb, oz, kg, kgf, lbf, ozf,
Balance weight: 350g (no sensor)
