2 yearswarranty

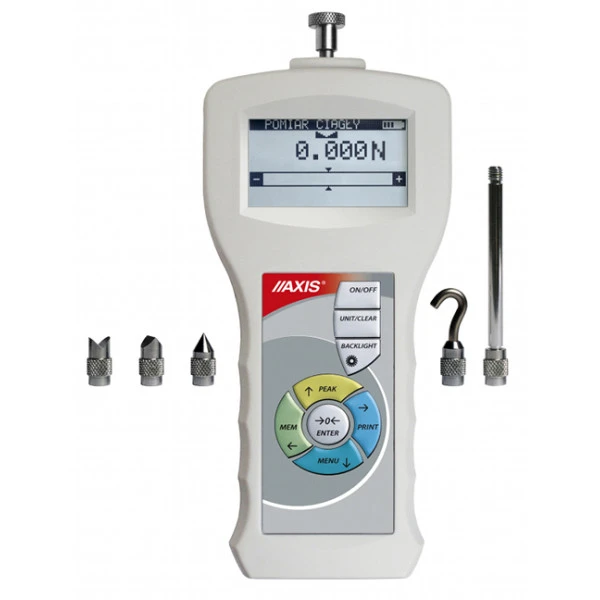

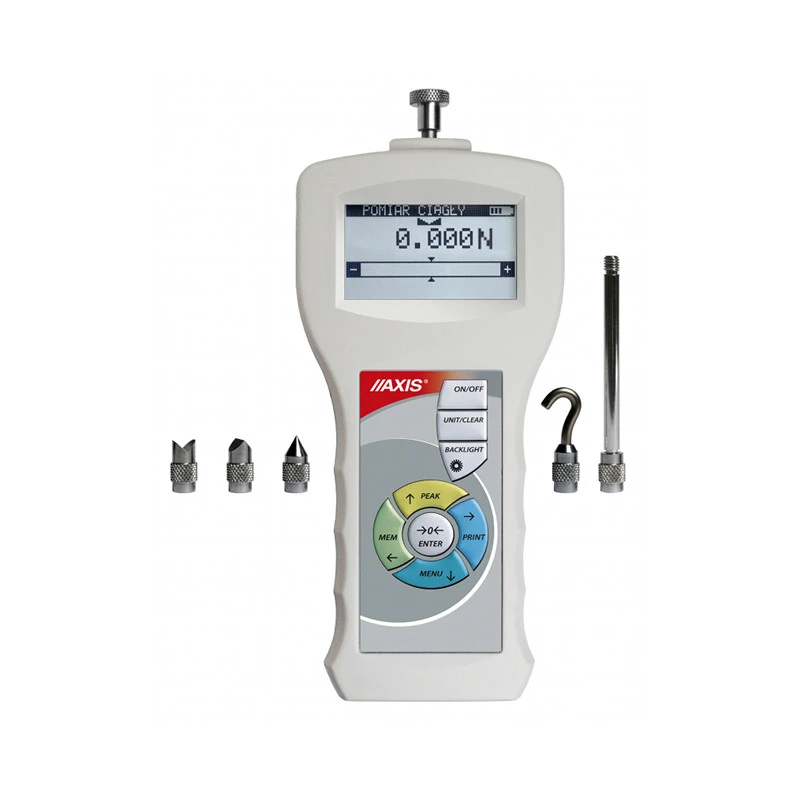

FB and FC series force meters are dedicated for measuring force during pressing and pulling activities, as well as for mass measuring. FC series have increased sampling time (1000 measurements per second!) that enables better measurement of dynamical forces.
Force gauges are used in specialised laboratories, manufacturing and quality control.
Their characteristic features are ergonomic shape and easy operating.
FB and FC meters are delivered together with a set of terminals in handy suitcase, allowing using the meter as universal measuring device. The meters can be used for measuring when they are carried in hand or when they are fixed or hung.
Graphical display of the meter allows easy reading of indications or presenting measurement results on histogram or on chart.

Special computer program for acquisition and data presentation delivers new possibilities in area of observing and measuring variable forces.

Wide range of printout configuration affirms compliance with requirements of GLP procedures, when a printer is connected to force meter.

Additionally vertical support stand , horizontal support stand, double-hand handle, hook for hanging ,manual grip, hex grip, roller grip and other accessories that allow special measurements can be delivered.

Special functions:
- PEAK value measurement
- Continuous measurement

Capacity (Max): 10N (1kg)
Reading unit (d): 0,002N
Interfaces: RS232C, USB, option: WE (trigger and gate output), WY (threshold output)
Working temperature: -10÷+40
Dimensions: 215x98x41mm
Power supply: NiMH accumulators - 4pcs.+ supply ~230V/12V
Sampling time: 0,1s/ 0,025s
Accuracy: ±0,1% F.S.
Maximal overload: 20%
Measure units: N, g, lb, oz, kg, kgf, lbf, ozf,
Display: LCD graphical 61x34mm
Balance weight: 430g (no accumulators)

FB and FC series datasheet User manual for FB force meters
