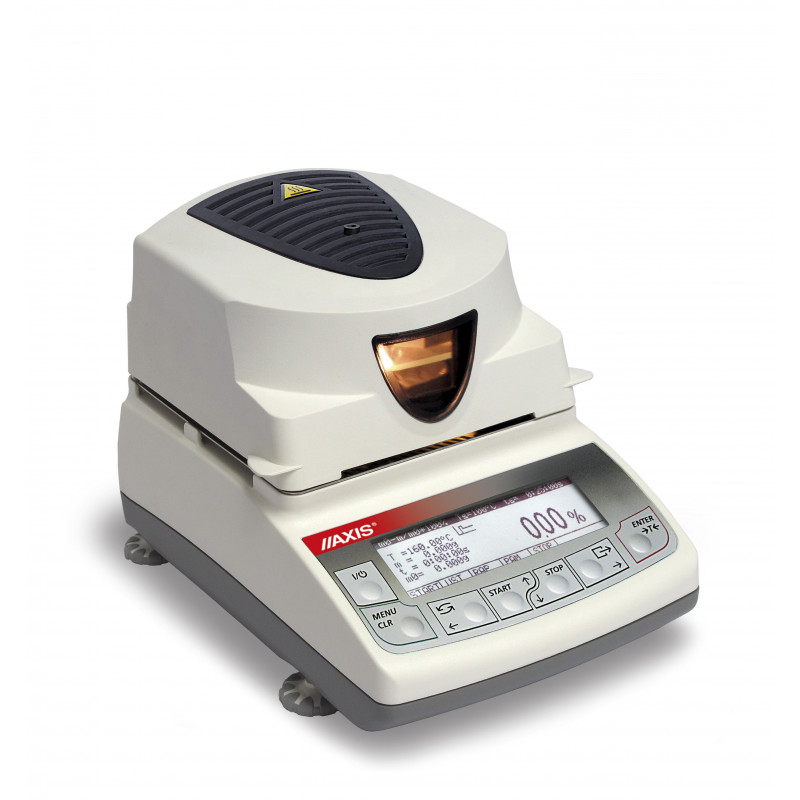

ATS210
Moisture analyzers (series ATS)
3,820.00 zł
3,720.00 zł
Save 100.00 zł
Tax excluded
Readability [d]: 1mg
Capacity [max]: 210g
- halogen radiators
- graphical display
- text menu
- drying chart displaying
- drying profiles
- USB, RS232C and PS2 interface
Security policy
Shipping rules
(contact dealer in your area)
Moisture analyzers of ATS series are used for quick and precise determination of material humidity upon the basis of weight loss during drying of its small sample (thermo-gravimetrical method). Halogen radiators ensure efective sample drying. ATS functioning is based on laboratory scale mechanism.
Time, temperature and drying profile (course) can be adapted to examinated material features. To simplify drying parameters choice, initial drying can be done with graph result.
The RS232C connection permits to connect a printer or a computer in order to print receipts, raports or further processing weighing results. The printed raports enable fulfilment of GLP recommendation.
Temperature correction (option):
Special functions:
- 4 drying profiles: standard, slow, step and fast
- 20 drying settings memory
- Capacity (Max)
- 210g
- Reading unit (d)
- 1mg
- Interfaces
- RS232C, PS2, USB
- Working temperature
- +18÷33ºC
- Weighing time
- under 8s
- Dimensions
- 185x290x170mm
- Power supply
- ~230V 50Hz 230VA
- Balance weight
- 3,9kg
- Weighing chamber dimensions
- ø108x20mm
- Pan size
- ø90mm
- Humidity measurement repeatability
- +/- 0,1%(próbka 2g) +/- 0,04%(próbka 5g)
- Humidity readout precision
- 1% (sample 0,02÷0,5g) | 0,1% (sample 0,5÷5g) | 0,01% (sample <5g)
- Drying temperature
- 160ºC
- Sampling time
- 1-180s
- Max drying time
- 10h
- Chamber heating time up to 100°C
- about 3min.
- halogen radiators
- graphical display
- text menu
- drying chart displaying
- drying profiles
- USB, RS232C and PS2 interface
