4BA600NA -A+
Normal steel (series 4BA/NA)
7,800.00 zł
Tax excluded
Readability [d]: 0,2kg
Capacity [max]: 600kg
- construction: smooth painted steel
- 1 or 2 ramps
- sensors IP67
- indicator: painted aluminium
- products and users database
Security policy
Shipping rules
(contact dealer in your area)

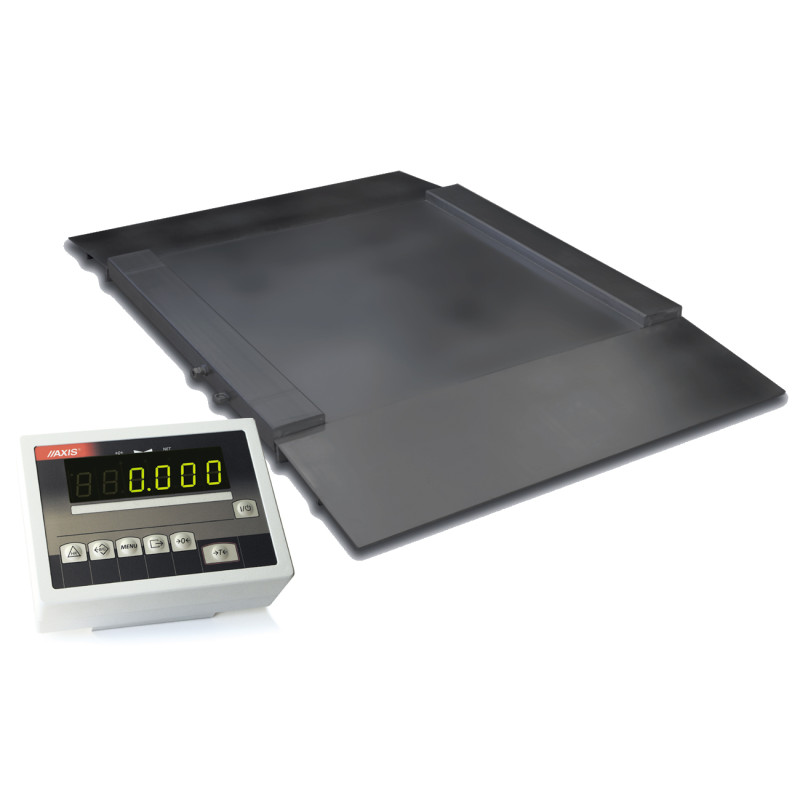

Overrun scales of 4BA/NA series are designed for weighing loads on manual carts. Due to structural material (powder coated steel) they may be used only in dry rooms. All scales have a full set of special functions.
Scales platforms are available in the following dimensions:
A - 860(internal)x1000x48mm
A+ - 1000(internal)x1000x48mm
B - 1000(internal)x1250x48mm
C - 1250(internal)x1500x58mm
- Capacity (Max)
- 600kg
- Reading unit (d)
- 0,2kg
- Verification unit (e)
- 0,2kg
- Tare range
- -Max
- Accuracy class
- III
- Interfaces
- standard: RS232
- Working temperature
- -10÷40°C
- Weighing time
- under 4s
- Power supply
- ~230V 50Hz 8VA
- Balance weight
- 160kg
- Meter IP protecion
- IP40
- Sensor IP protection
- IP67
- Platform dimensions
- 1000x1000 x48mm
- Overrun dimensions (length x height)
- 355x48mm
